Software + Hardware
Integrated products that combine our management software with field-proven hardware.
EMS Solutions by Storage Capacity
From small energy storage power plants to large-scale BESS and AI data centers, we provide EMS configurations matched to each project’s scale.

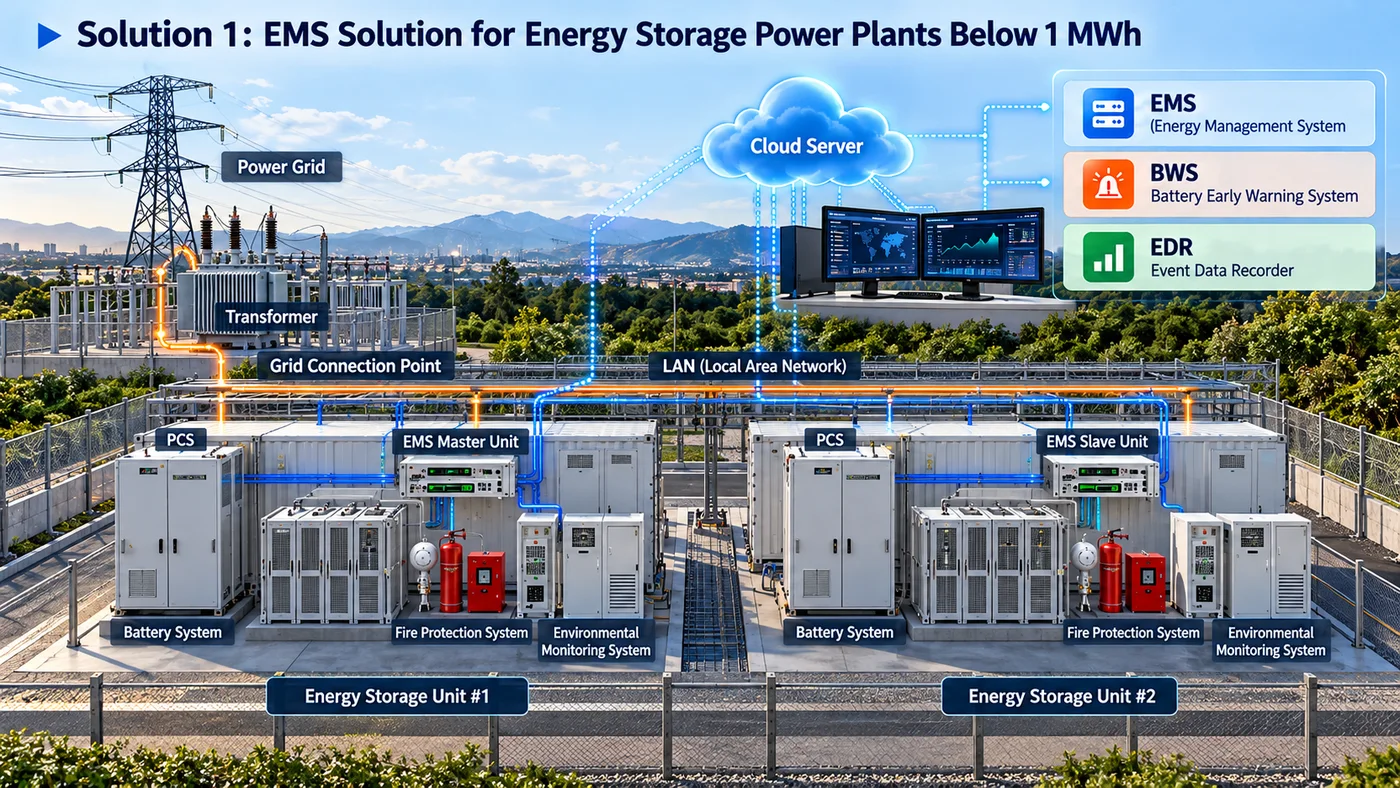

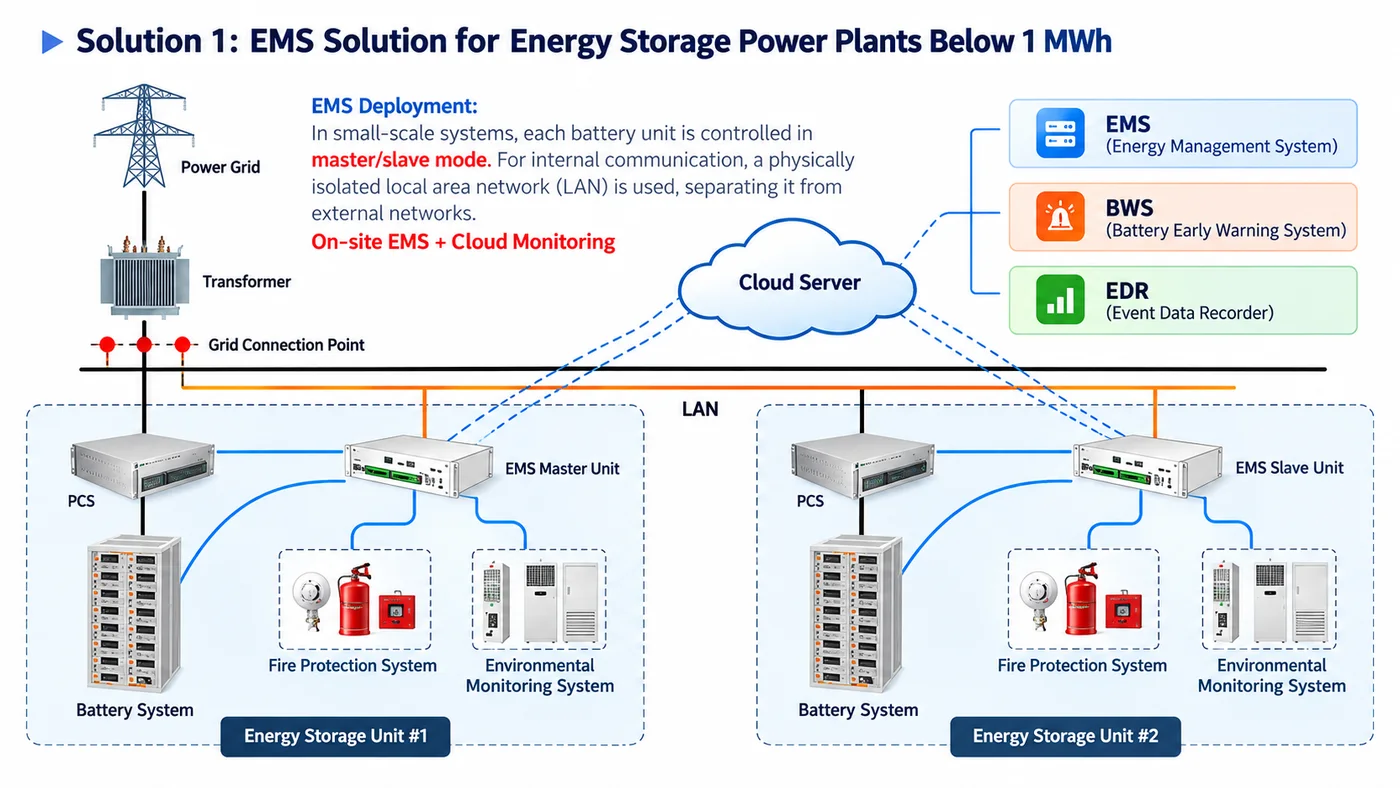

EMS Solution for Energy Storage Power Plants Below 1 MWh
| Battery storage capacity | Below 1 MWh |
|---|---|
| EMS configuration | On-site embedded EMS + cloud |
| Integration | iEMS10 integrated hardware and software monitoring system |
| Network architecture | Master/slave mode |
| Cloud monitoring platform | EMS, BWS, EDR, OMS |

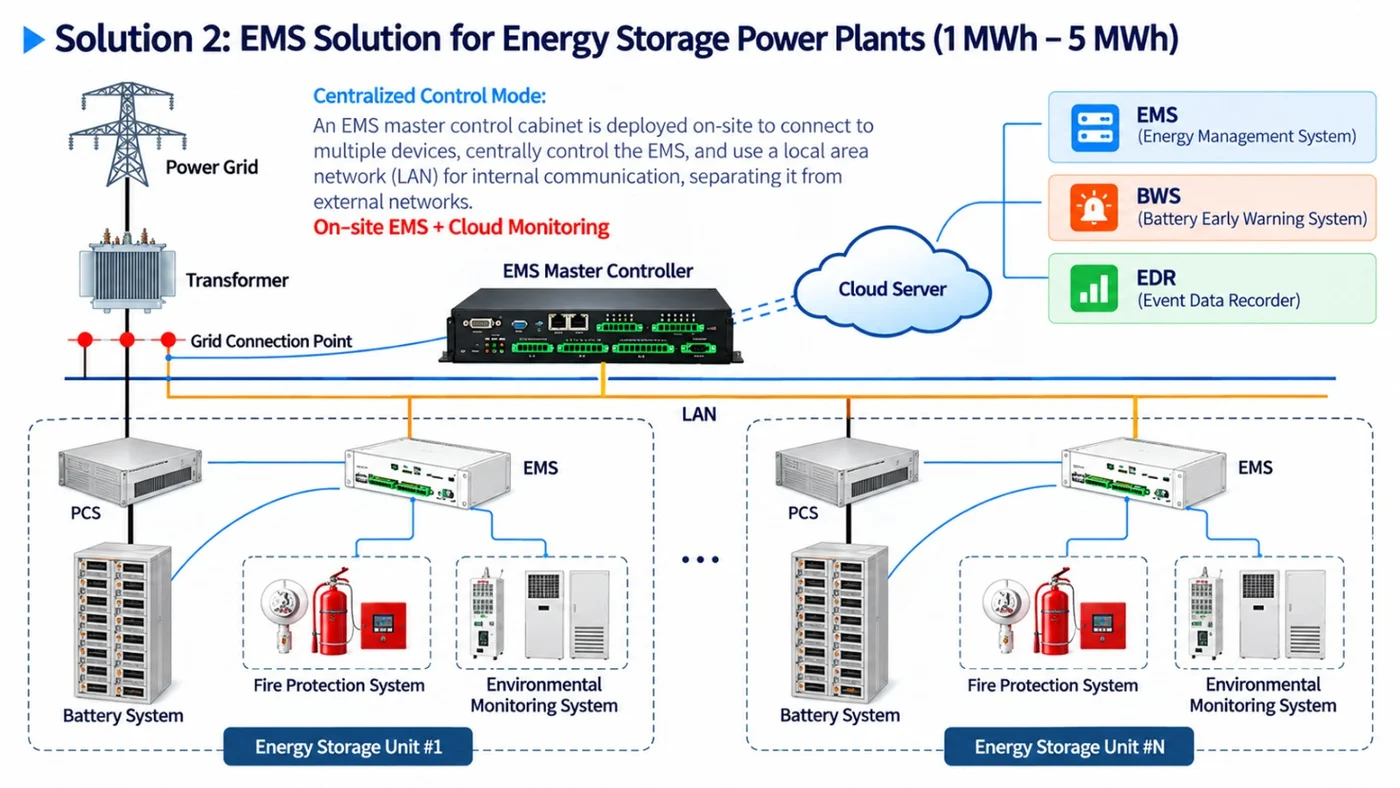

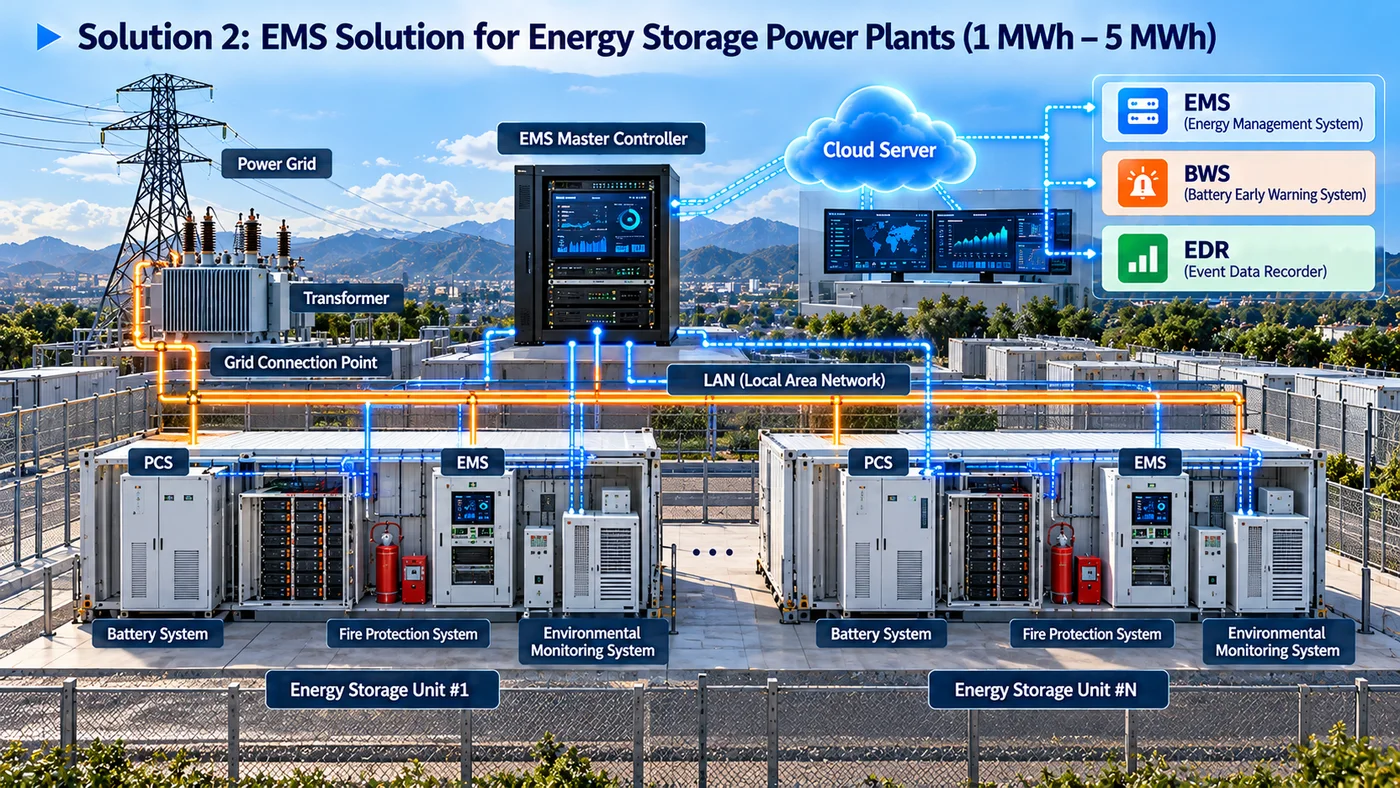

EMS Solution for Energy Storage Power Plants (1 MWh – 5 MWh)
| Battery storage capacity | 1 MWh – 5 MWh |
|---|---|
| EMS configuration | On-site embedded EMS + cloud |
| Integration | iEMS10 integrated hardware and software monitoring system |
| Network architecture | Centralized control |
| Cloud monitoring platform | EMS, BWS, EDR, OMS |

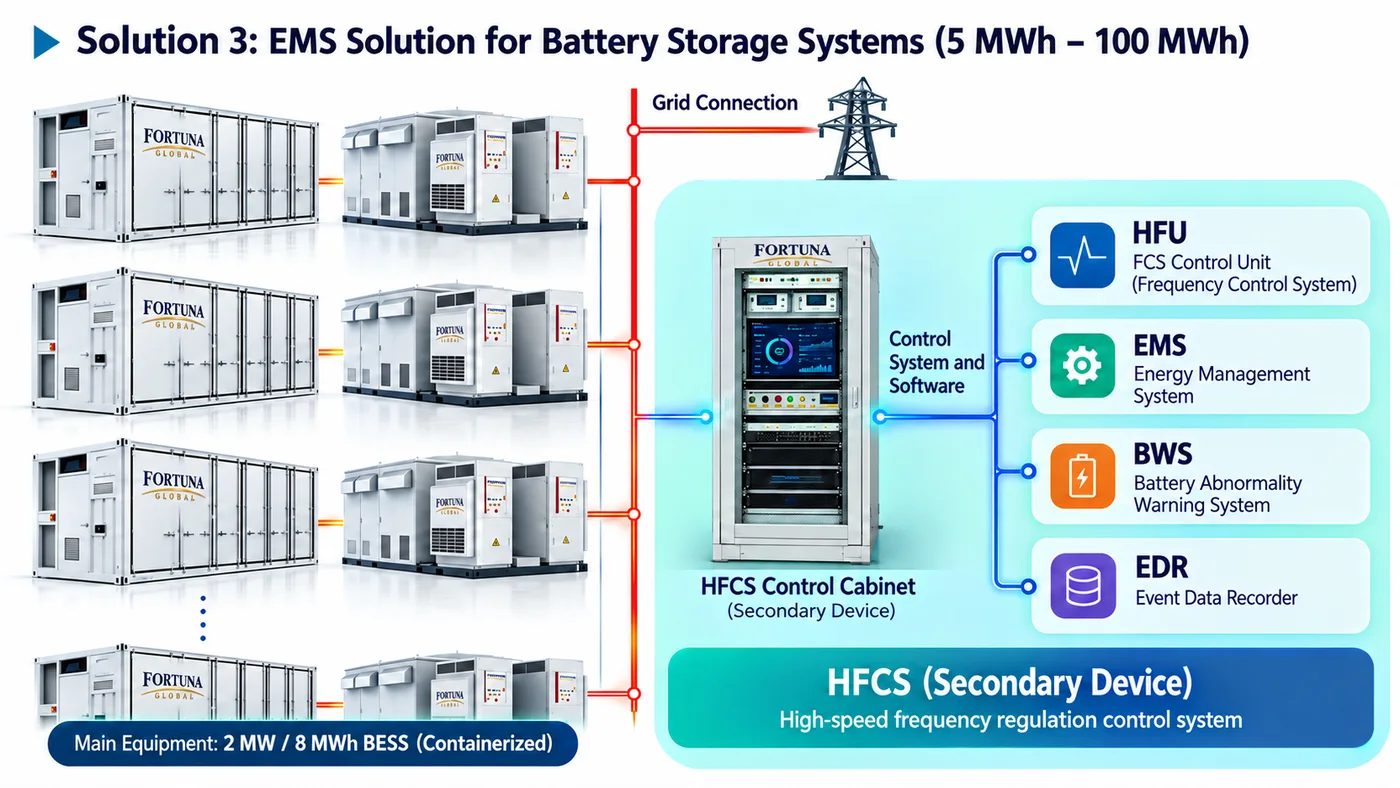

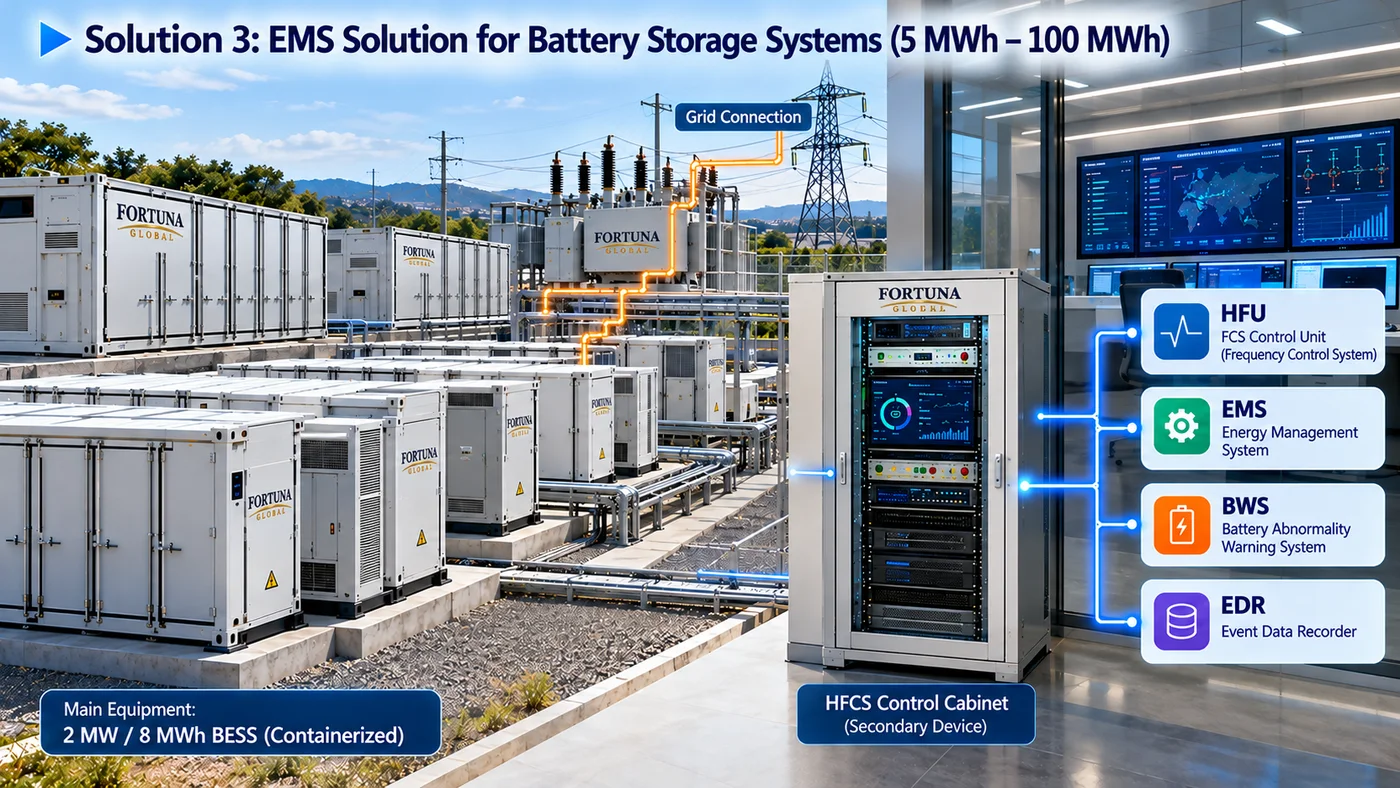

EMS Solution for Battery Storage Systems (5 MWh – 100 MWh)
| Battery storage capacity | 5 MWh – 100 MWh |
|---|---|
| EMS configuration | On-site EMS server + on-site security control server (single-cabinet network) |
| Network architecture | On-site industrial Ethernet |
| HFCS | HFU, EMS, BWS, EDR |

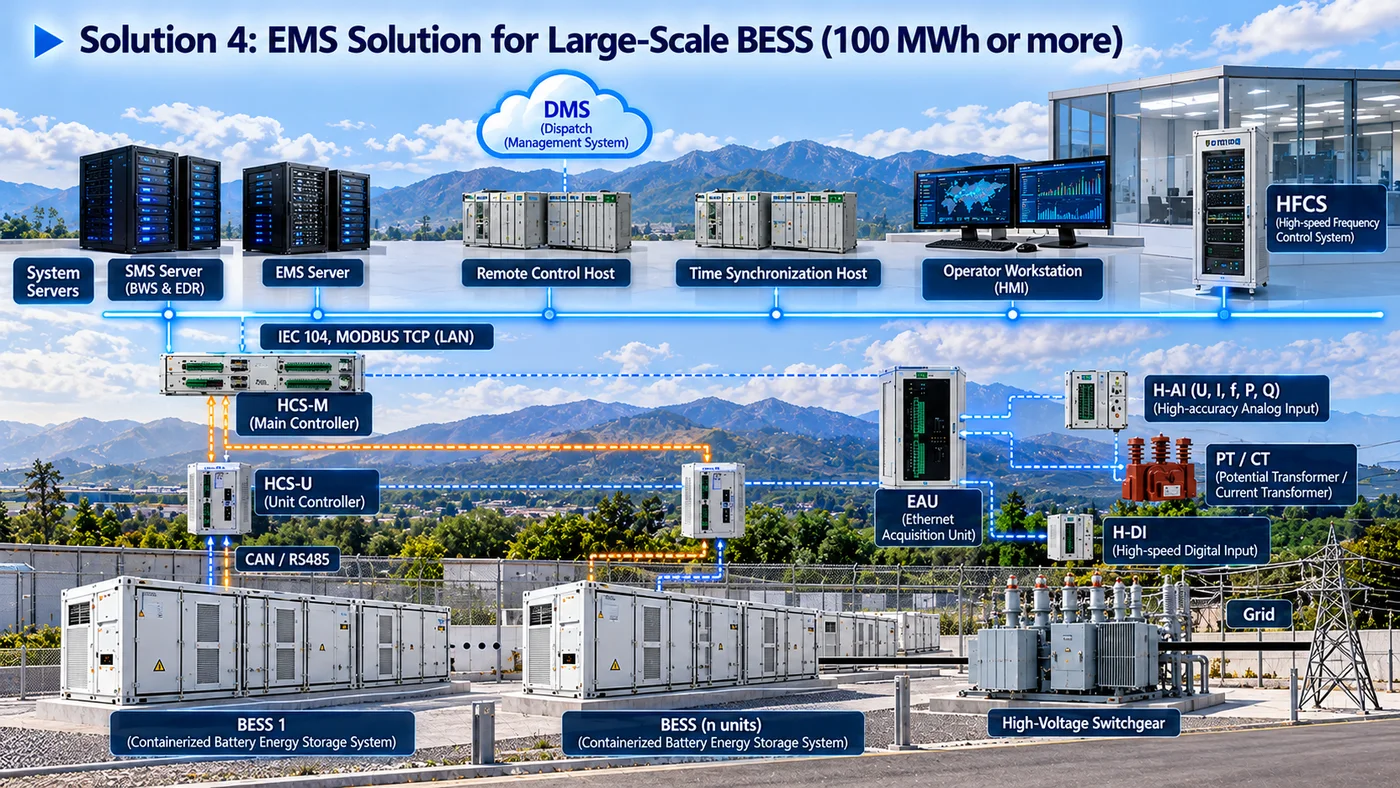

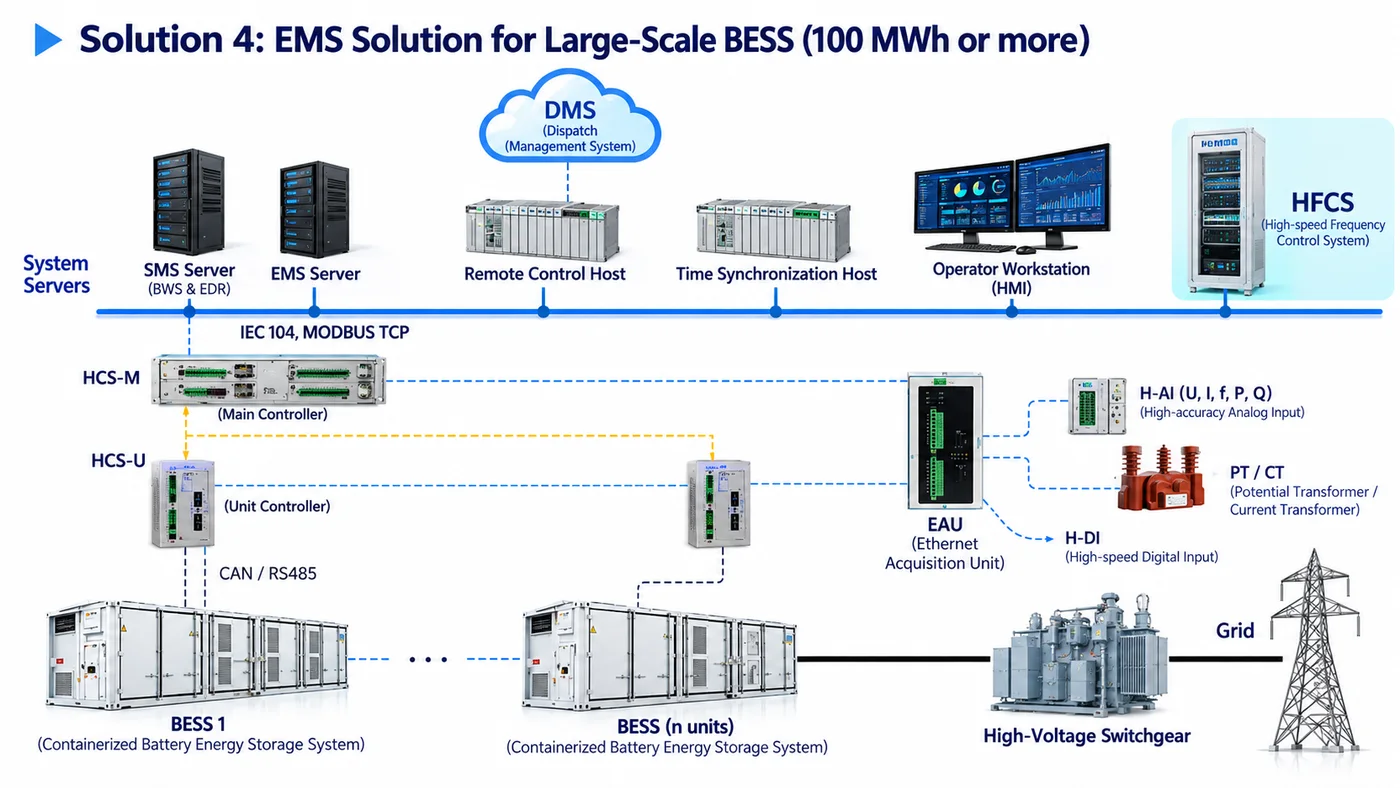

EMS Solution for Large-Scale BESS (100 MWh or more)
| Battery storage capacity | 100 MWh and above |
|---|---|
| EMS configuration | On-site EMS server + on-site security control server |
| Network architecture | On-site industrial Ethernet |
| HFCS | HFU, EMS, BWS, EDR |

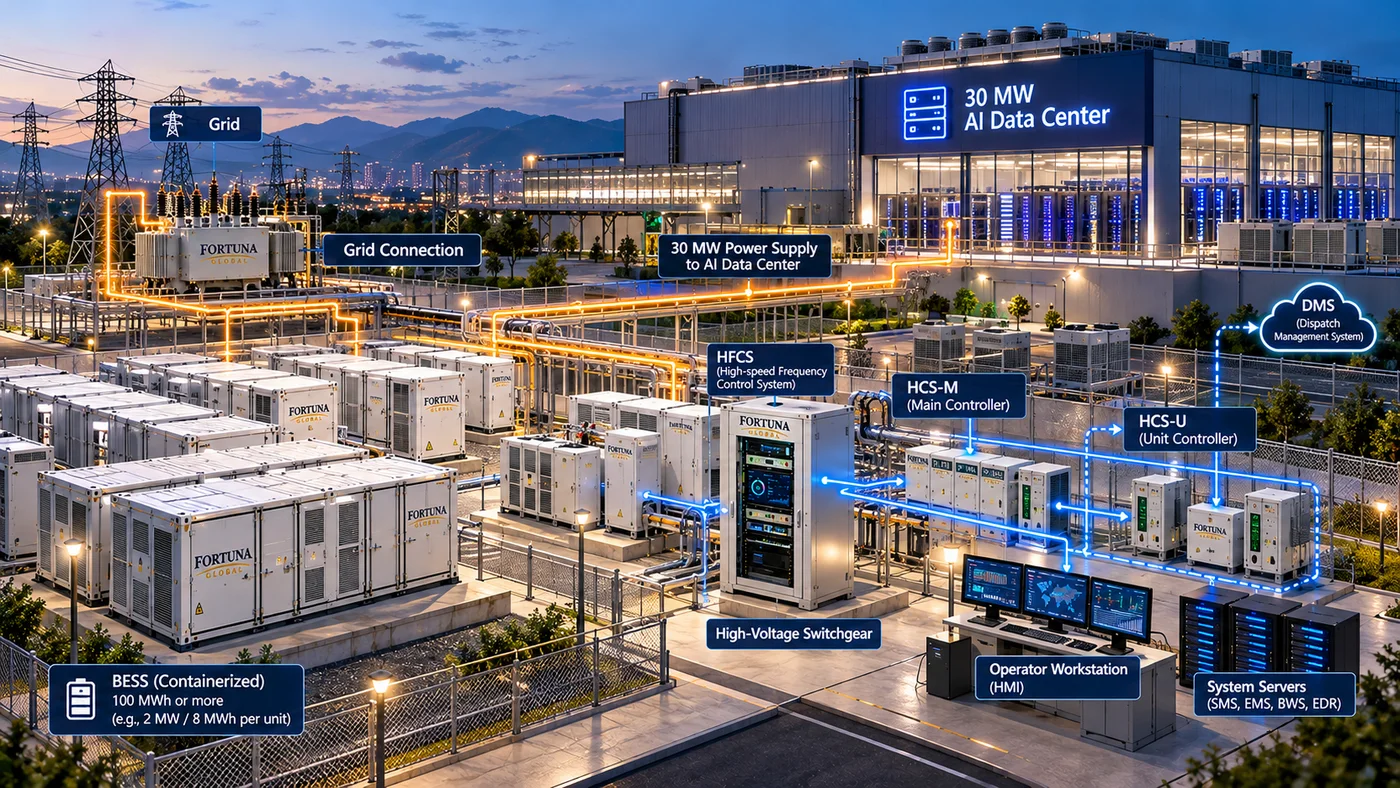

30 MW AI Data Center
A 100 MWh BESS supplying 30 MW of power to an AI data center.
| Battery storage capacity | 100 MWh |
|---|---|
| EMS configuration | On-site EMS server + on-site security control server (single-cabinet network) |
| Network architecture | On-site industrial Ethernet |
| HFCS | HFU, EMS, BWS, EDR |
Technical Specifications – FBK Series Industrial Controller
1. System Specifications
| Parameter | Specifications |
|---|---|
| Processor | Dual-core Cortex-A7, 1.2 GHz, industrial grade / Quad-core 1.8 GHz, industrial grade |
| Memory (RAM) | 512 MB / 2 GB |
| Onboard Storage | 4 GB / 16 GB |
| Operating System | Linux Buildroot / Ubuntu Linux |
2. Communication & I/O Interfaces
| Parameter | Specifications |
|---|---|
| RS485 | 6 / 8 channels |
| CAN | 2 channels |
| Digital Outputs (DO) | 4 / 10 / 8 channels |
| Digital Inputs (DI) | 4 / 10 / 8 channels |
| Ethernet | 2 / 4 / 5 ports |
| Display Interface | None / DVI (LVDS) / HDMI |
| USB-A | 2 / 4 / 1 ports |
| Debug Interface | 1 × USB Type-C |
| TF Card Slot | 1 × TF (microSD) card slot |
| SATA Interface | None / 1 port |
3. Wireless Communication
| Parameter | Specifications |
|---|---|
| 4G Cellular Communication | Optional |
| BeiDou / GPS Positioning | Optional |
| Wi-Fi | None / Optional |
| Bluetooth | None / Optional |
4. Environmental Specifications
| Parameter | Specifications |
|---|---|
| Operating Temperature | −40°C to +80°C |
| Operating Humidity | Up to 95% RH, non-condensing |
| Storage Temperature | −40°C to +80°C |
| Storage Humidity | Up to 95% RH, non-condensing |
| Operating Altitude | Below 3,000 m |
5. Protection & Compliance
| Parameter | Specifications |
|---|---|
| Electromagnetic Compatibility (EMC) | Up to Level 4 in accordance with the relevant GB 17626 series standard |
6. Mechanical Specifications
| Parameter | FBK-1000 | FBK-2000 | FBK-3000 |
|---|---|---|---|
| Dimensions (mm) | 244 × 32 × 160 | 244 × 42 × 160 | 234 × 44 × 144 |
| Installation | Wall-mounted or desktop | Wall-mounted or desktop | Wall-mounted or desktop |
Values separated by “/” differ by model.
Delivering Electricity to Remote and Underserved Communities
We bring electricity to remote areas and isolated communities inhabited by ethnic minorities, including those facing population decline.
Power supply begins on the very day the container is installed.
Our system offers a higher internal rate of return (IRR) than any other power generation method. Its mobile and relocatable design also makes it particularly attractive for lease financing from financial institutions.

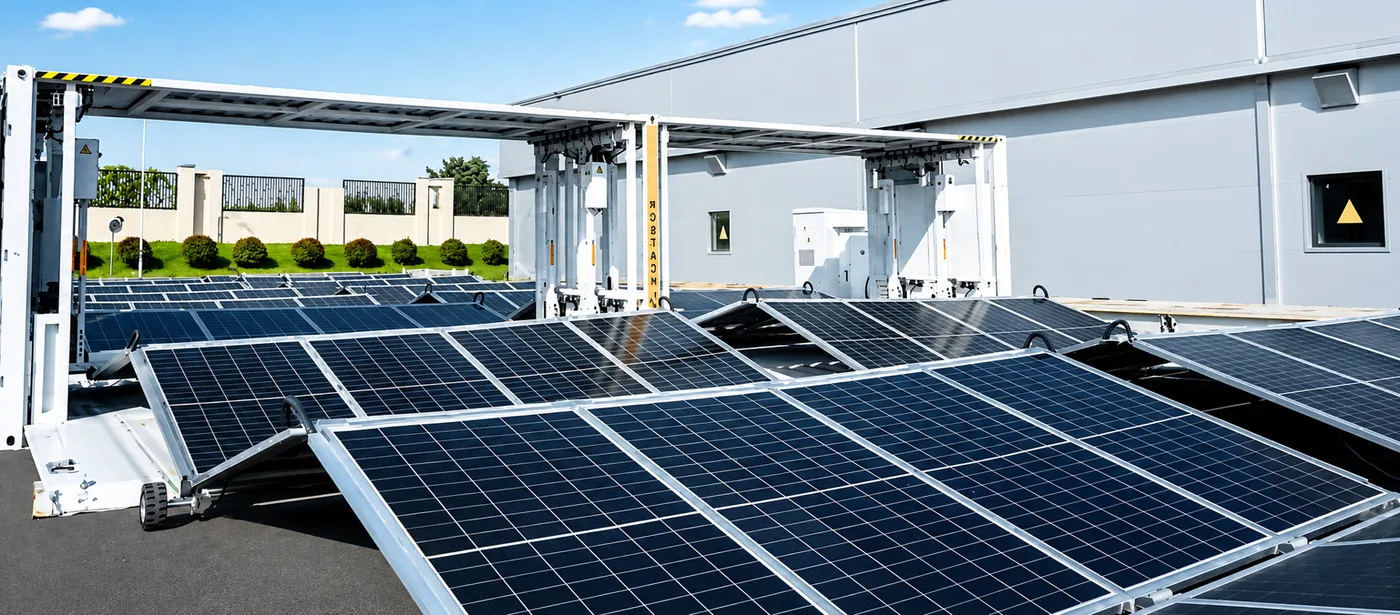

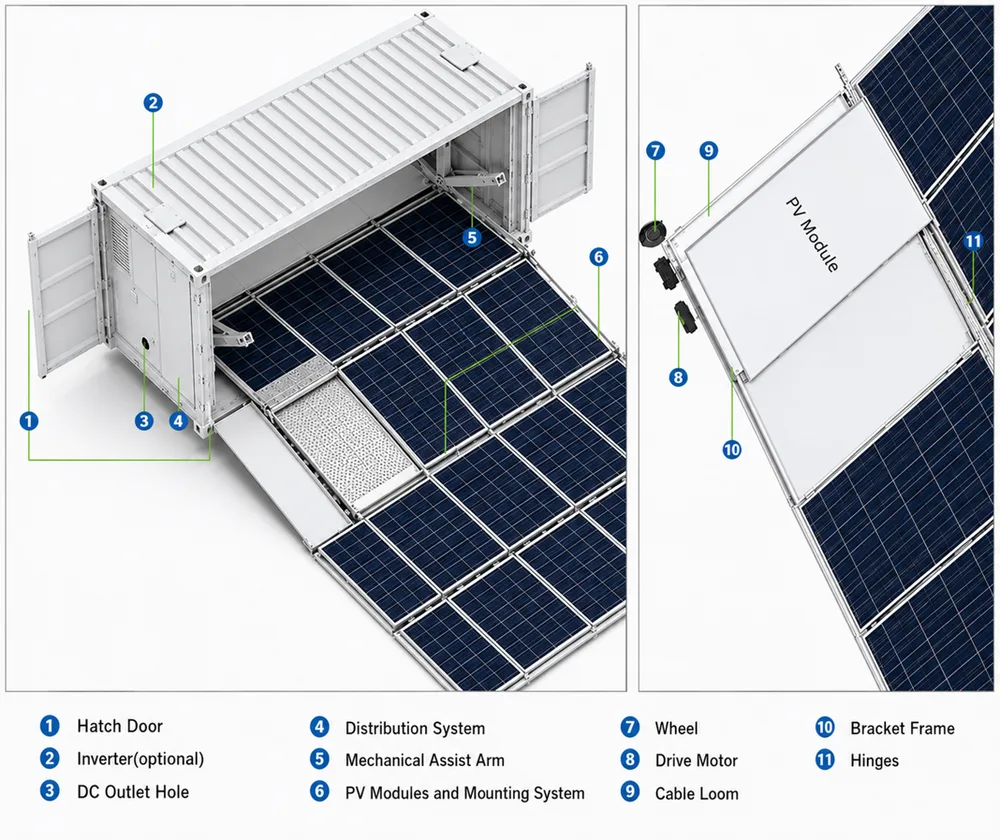

Specifications
| Product | Mobile Solar Power Station |
|---|---|
| Model | WG40-A |
| PV (Photovoltaic) Capacity | 103.68 kW |
| Battery Energy Storage Capacity | 261 kWh |
| System Type | Mobile / Containerized Solar Power Station |
Warranty
| Component | Warranty Period |
|---|---|
| Complete Solar Container System | 5 years |
| Solar PV Modules | 12 years |
| Inverter and Energy Storage System | 5 years |
| Battery Energy Storage System | 10 years / 9,000 charge-discharge cycles* |

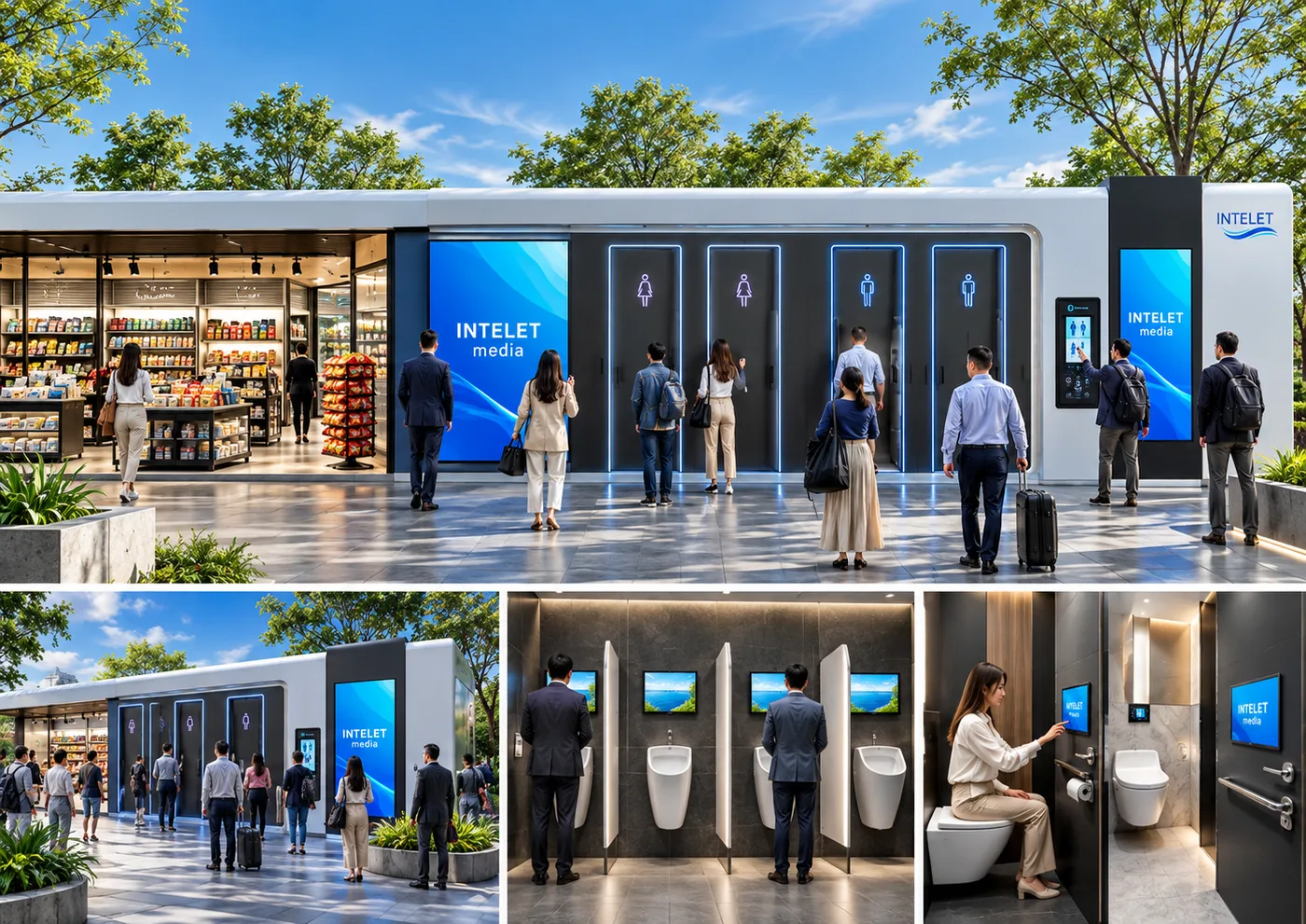

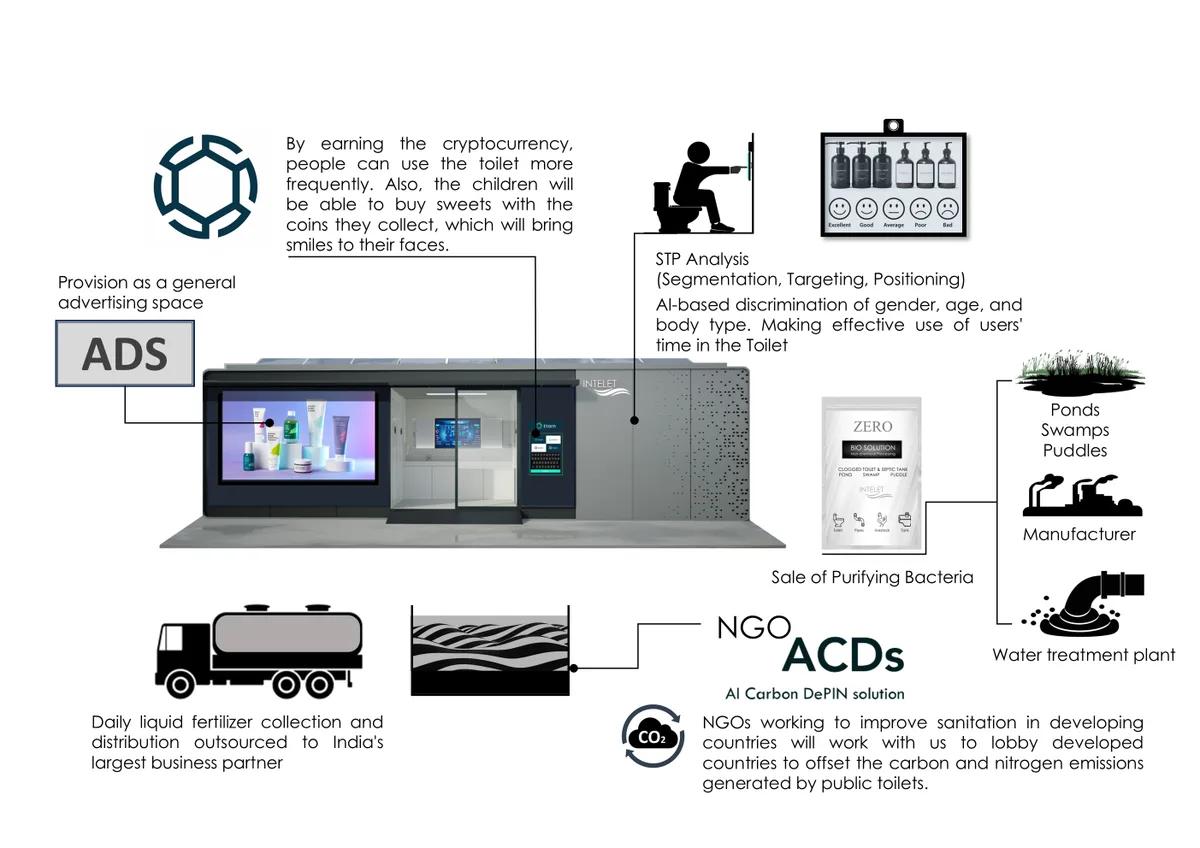

INTELET – Intelligent Toilet System
INTELET utilizes advanced biotechnology developed in Japan to break down human solid waste using naturally occurring bacteria, converting it into fertilizer. Urine is treated and filtered into reusable water for toilet flushing and automated cleaning. Fresh tap water is used separately for handwashing.
INTELET also features an innovative digital advertising and rewards platform. Users earn reward points in the form of a dedicated cryptocurrency by viewing informational content and advertisements, creating a direct connection between users and participating advertisers.
INTELET systems are manufactured and sold customized to each customer’s requirements. Each system incorporates proprietary management software that integrates and controls the entire operation—biological waste treatment, water recycling, automated cleaning, digital advertising and cryptocurrency-based rewards.
Product inquiries
Please direct all product inquiries to info@fortunaglobal.jp or use our contact form.
